VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Doral, FL | Sightline Windows & Doors Doral

The VLX 100 Bifold / Folding Door is an accordion-style aluminum folding system that turns an entire wall into an open-air passage. In Doral, where outdoor kitchens, pool decks, and covered lanais are part of daily life, this door style has become the go-to for homeowners who want their living room and patio to feel like one continuous space. Sightline Windows & Doors Doral is an authorized installation partner for ViewLux, the manufacturer behind this system. That partnership means your project is covered by factory-trained expertise, warranty-safe installation, and direct access to the full ViewLux specification range. We’ve installed these doors across Doral, from homes near Downtown Doral to properties along the Blue Lagoon and NW 87th Avenue corridors. If you’re planning a new build or replacing sliding doors that never quite gave you the opening you wanted, call us at (786) 460-1563 to schedule a free on-site measurement.

Call (786) 460-1563

Product Overview - VLX 100 Bifold / Folding Door

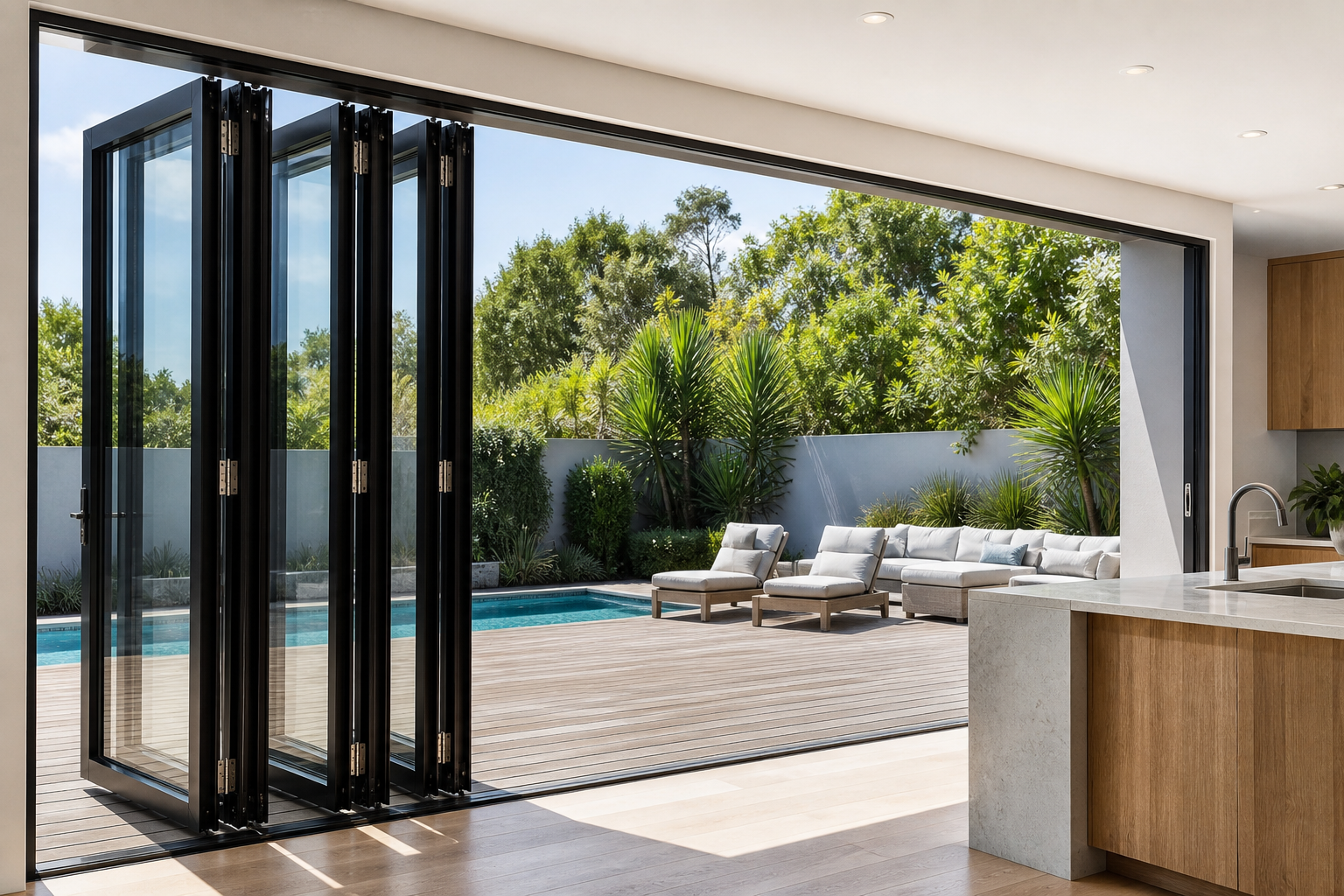

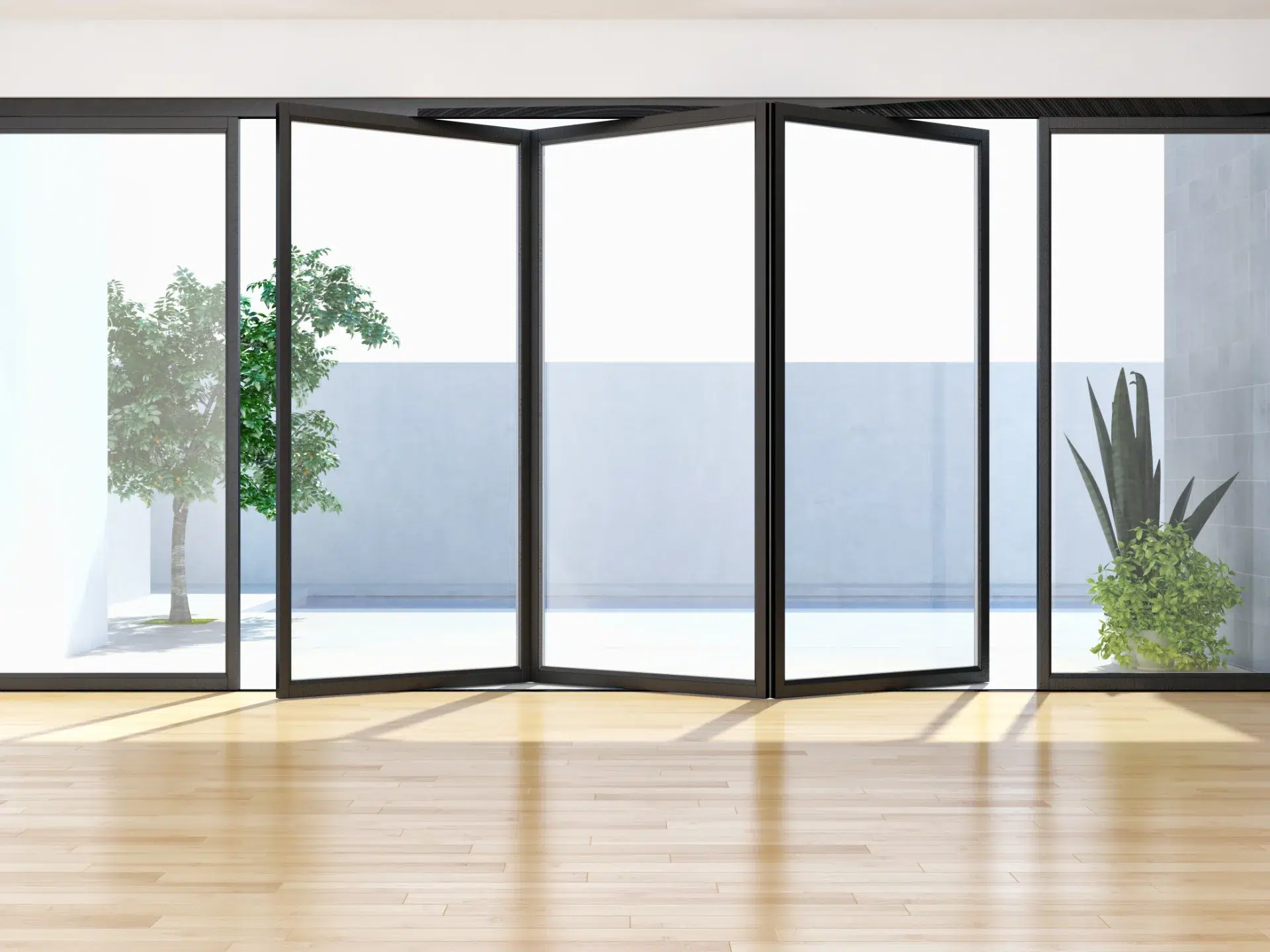

The VLX 100 is built around a simple idea: the wall should disappear when you want it to. The accordion-style aluminum bifold design stacks panels to one or both sides, creating a wall-to-wall opening that sliding doors simply cannot match. For Doral homes with golf course views, lakefront lots, or compact backyards where every square foot matters, that full opening changes how the space lives.

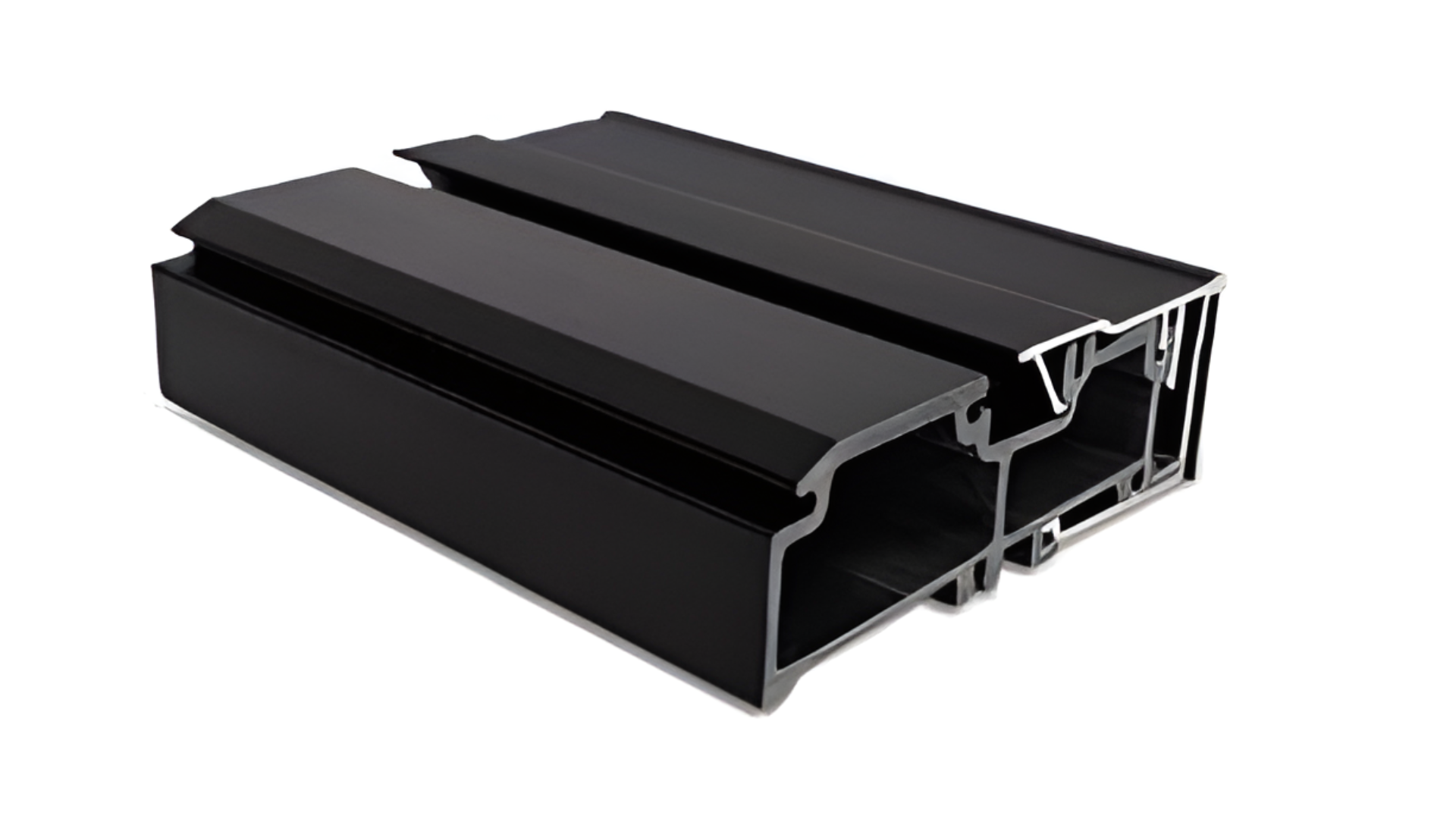

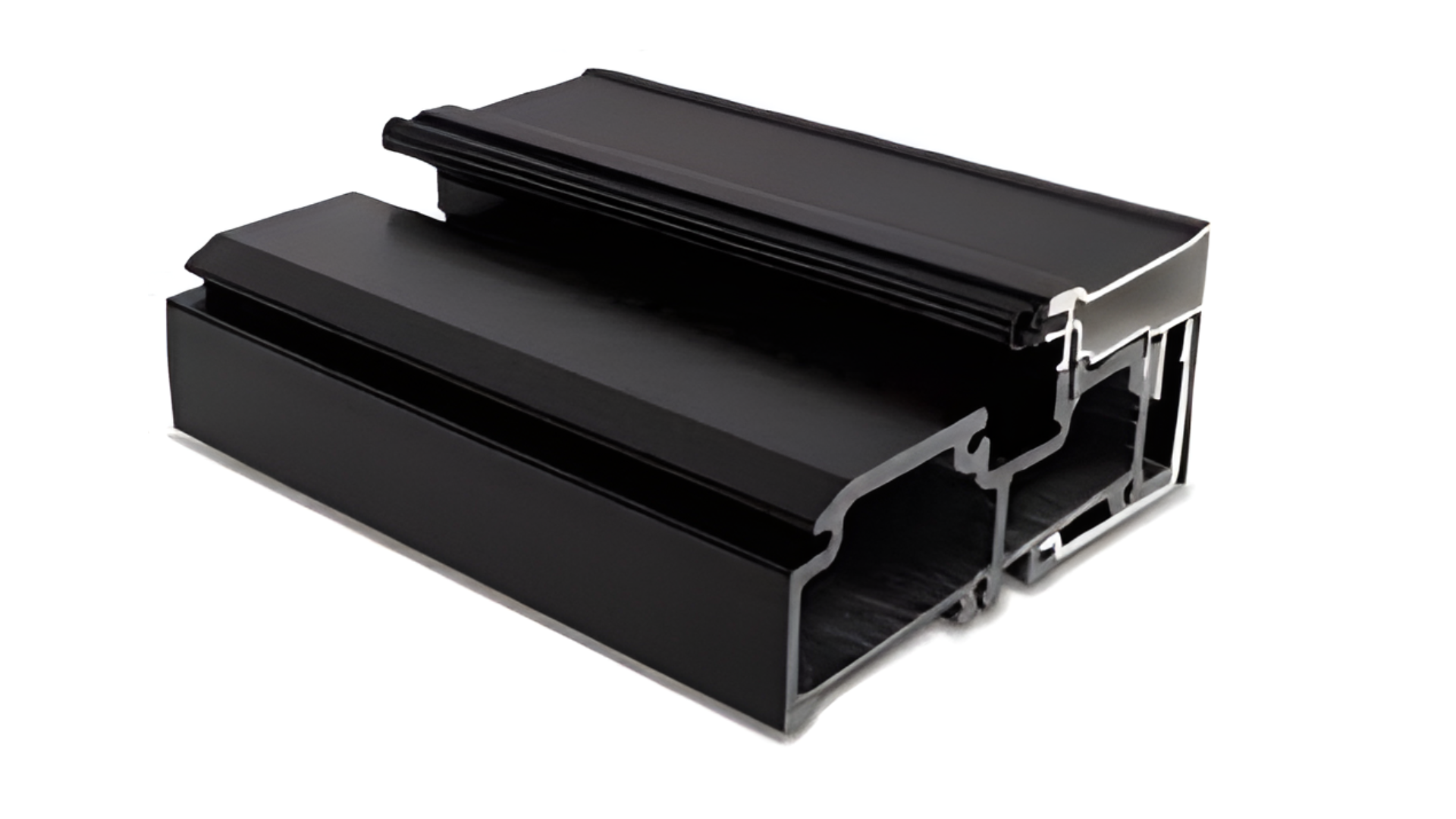

The frame uses a 2.56-inch profile width with 0.098-inch wall thickness aluminum. That is substantial enough for structural rigidity across wide spans without the bulky sightlines that cheapen the view. The system handles up to 20 feet in total width, which covers most residential openings in Doral’s single-family and townhome market. Panels fold flat and park out of the way, so furniture placement near the opening is not restricted by a fixed door panel.

Buyers choose this series for three reasons. First, the thermal break construction separates interior and exterior aluminum surfaces, which matters in South Florida’s cooling-dominated climate. Second, the hardware is engineered for repeated daily use - these doors get opened and closed far more than a standard patio door. Third, the clean sightlines suit both modern minimalist architecture and transitional Doral homes that mix contemporary and Mediterranean elements. The materials and engineering are purpose-built for coastal humidity, salt air exposure, and the intense UV that fades lesser finishes in two to three years.

Technical Specifications

Panel count determines how the door folds and where panels stack. A 2-panel unit folds once and parks to one side. Six-panel units accordion in both directions for a centered, symmetrical stack. Your Sightline Windows & Doors Doral estimator will measure your rough opening and recommend the configuration that preserves the most usable wall space.

Before

After

Performance Features

Thermal Efficiency
The thermal break insert separates interior and exterior aluminum extrusions, cutting conductive heat transfer. NFRC-rated energy performance gives you verified U-factor and SHGC numbers for Doral’s cooling-heavy load calculations. Low-E glass options further reduce solar heat gain without darkening the view.

Acoustic Performance
Multi-point locking compresses gaskets uniformly around the frame perimeter. Combined with laminated glass, this assembly dampens exterior noise from nearby roads, pool equipment, or neighboring properties. Doral’s denser developments near the city center benefit most from this rating.

Airtightness & Weather Seal
AAMA 812 low-expansion foam sealant fills all perimeter joints between frame and rough opening. Factory-applied brush seals and compression gaskets at panel interlocks stop unconditioned air infiltration. The result is consistent indoor temperature and lower humidity intrusion during Doral’s wet season.

Waterproofing
Sill design includes a subsill drainage channel that directs wind-driven rain to exterior weep holes. AAMA 2400/2410 installation standards govern flashing integration with your wall’s water-resistive barrier. We never skip this step, even on covered openings.

Wind Resistance
The 0.098-inch wall thickness and reinforced corner joints meet wind-load ratings for Miami-Dade County requirements. Impact-resistant laminated glass is available for homes in wind-borne debris regions. Sightline Windows & Doors Doral verifies your specific zone and installs accordingly.

Security & Hardware
Multi-point locking engages at the sill, header, and intermediate points. Hinges and rollers are stainless steel or zinc-coated for corrosion resistance. The hardware is tested to cycling standards that exceed typical residential use, so daily operation stays smooth for years.

Color & Glass Options

The six finish options cover the full range of Doral architectural styles. Premium Black and Pure White dominate new construction near Downtown Doral and the Midtown Doral district, where clean lines and contrast are the design language. Anodized Silver suits contemporary homes with metal roof accents or steel cable railings. Bronze and Champagne work with the warm stucco tones and tile roofs common in older Doral neighborhoods and golf course communities. Teak Wood delivers the grain appearance of tropical hardwood without the maintenance burden of actual wood in humid conditions.

Glass selection should match how you use the space. Clear glass maximizes visible light transmission for north-facing openings or covered lanais. Low-E is the practical default for most Doral installations, reflecting infrared heat while preserving clarity. Tempered glass provides the safety break pattern required for doors in many building codes. Laminated glass adds the impact resistance needed for HVHZ (High Velocity Hurricane Zone) compliance and reduces sound transmission. Gray Tint and Black Tint cut glare and solar heat gain for west-facing walls that take direct afternoon sun. Your Sightline Windows & Doors Doral estimator will note your orientation and recommend accordingly.

Installation by Sightline Windows & Doors Doral in Doral

We install every VLX 100 per AAMA 2400/2410 standards, which is the same protocol used for commercial storefront systems. That matters because improper installation voids the ViewLux manufacturer warranty. We’ve seen homeowners in Doral lose coverage because a handyman skipped the foam sealant or shimmed the frame out of square to compensate for a crooked rough opening.

Our process starts with a pre-install inspection. We check the rough opening dimensions, structural header capacity, and floor levelness. In Doral, we frequently find that slab settlement or original builder tolerances require us to plane the sill area or build up with approved leveling compounds. We do not hide those conditions with trim.

Frame setting follows: level, plumb, square, and anchored to structural members, not just drywall or trim. We apply AAMA 812 low-expansion foam sealant to all perimeter joints, which expands to fill gaps without distorting the frame. Flashing tape integrates with your wall’s WRB (water-resistive barrier) per Miami-Dade building code requirements.

After panel hanging and hardware adjustment, we run a water test with a calibrated spray rack or hose spray per AAMA 502 field testing guidelines. We check operation across the full fold range, verify lock engagement at all points, and confirm screen retraction if applicable. The site is cleaned before we leave, and you receive written documentation of the installation for your warranty file.

Doral’s climate demands specific attention. Summer humidity can cause rapid condensation on poorly sealed frames. Our perimeter sealing prevents that. Salt air from coastal exposure accelerates corrosion on non-marine-grade hardware; we use only the specified stainless or coated components. And Doral’s afternoon thunderstorms test drainage paths we verify in real time during installation.

Frequently Asked Questions - VLX 100 Bifold / Folding Door

What is the lead time for the VLX 100 Bifold / Folding Door?
Lead time typically runs 8 to 12 weeks from signed approval and deposit, depending on panel configuration, finish selection, and glass type. Custom sizes or specialty finishes may extend this. We coordinate factory production schedules directly through our ViewLux partnership and update you at fabrication and shipping milestones. Call (786) 460-1563 for current lead times on your specific configuration.

Does the VLX 100 qualify for energy tax credits?
The NFRC-rated thermal performance and Low-E glass options may contribute to federal energy efficiency tax credits depending on the tax year and your total building envelope improvements. We provide certified NFRC labels and product performance data for your tax preparer. We do not give tax advice, but we ensure you have the documentation needed to claim any available credits.

What warranty comes with the Bifold / Folding Door?
ViewLux provides a limited lifetime warranty on the aluminum frame, 10 years on the insulated glass unit, and 5 years on hardware and finishes, subject to proper installation by an authorized partner. Sightline Windows & Doors Doral’s installation carries its own workmanship warranty. Warranty claims require proof of authorized installation; DIY or third-party installation voids coverage.

Can I customize the size?
Yes, within the 20-foot maximum span. Panel widths and heights are customized to your rough opening dimensions in quarter-inch increments. We measure on-site to confirm, then factory-order to those specs. Odd-sized openings, angled headers, or radius conditions require engineering review; we’ve handled these in custom Doral homes and will advise feasibility during your estimate.

How do I maintain aluminum frames?
Rinse frames quarterly with fresh water to remove salt and dust accumulation, especially if you live near Doral’s western lakes or open green spaces. Lubricate hinges and locking points annually with a silicone-based spray. Avoid abrasive cleaners or pressure washing directly at gasket edges. Retractable screens should be brushed free of debris before storage. We provide a maintenance checklist at project completion.

Get a Quote - VLX 100 Bifold / Folding Door in Doral

Ready to open your wall to the backyard, pool, or view you’ve invested in? Sightline Windows & Doors Doral brings factory-authorized expertise, AAMA-certified installation, and a track record across Doral’s neighborhoods to your project. We’ll measure your opening, walk you through configuration and finish options, and deliver a written line-item quote with no hidden costs. Call (786) 460-1563 today to schedule your free on-site estimate and start your VLX 100 Bifold / Folding Door project.

Written by the team at Sightline Windows & Doors Doral, serving Doral, FL as an authorized ViewLux installation partner.
