VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Doral, FL | Sightline Windows & Doors Doral

The VLX 100 Swing / Entry Door is a modern aluminum single entry door built around a minimalist frame and multi-point locking system. Homeowners and builders across Doral choose it when they want clean sightlines without sacrificing security or weather performance. At Sightline Windows & Doors Doral, we’re an authorized ViewLux installation partner, which means your door arrives factory-specified and we install it to keep the manufacturer’s warranty fully intact. Whether you’re replacing a dated entry door in a Doral townhome or specifying hardware for a new build near Downtown Doral, this system delivers the slim profile and thermal performance that South Florida’s climate demands. Call us at (786) 460-1563 to schedule a free on-site measurement and written quote.

Call (786) 460-1563

Product Overview - VLX 100 Swing / Entry Door

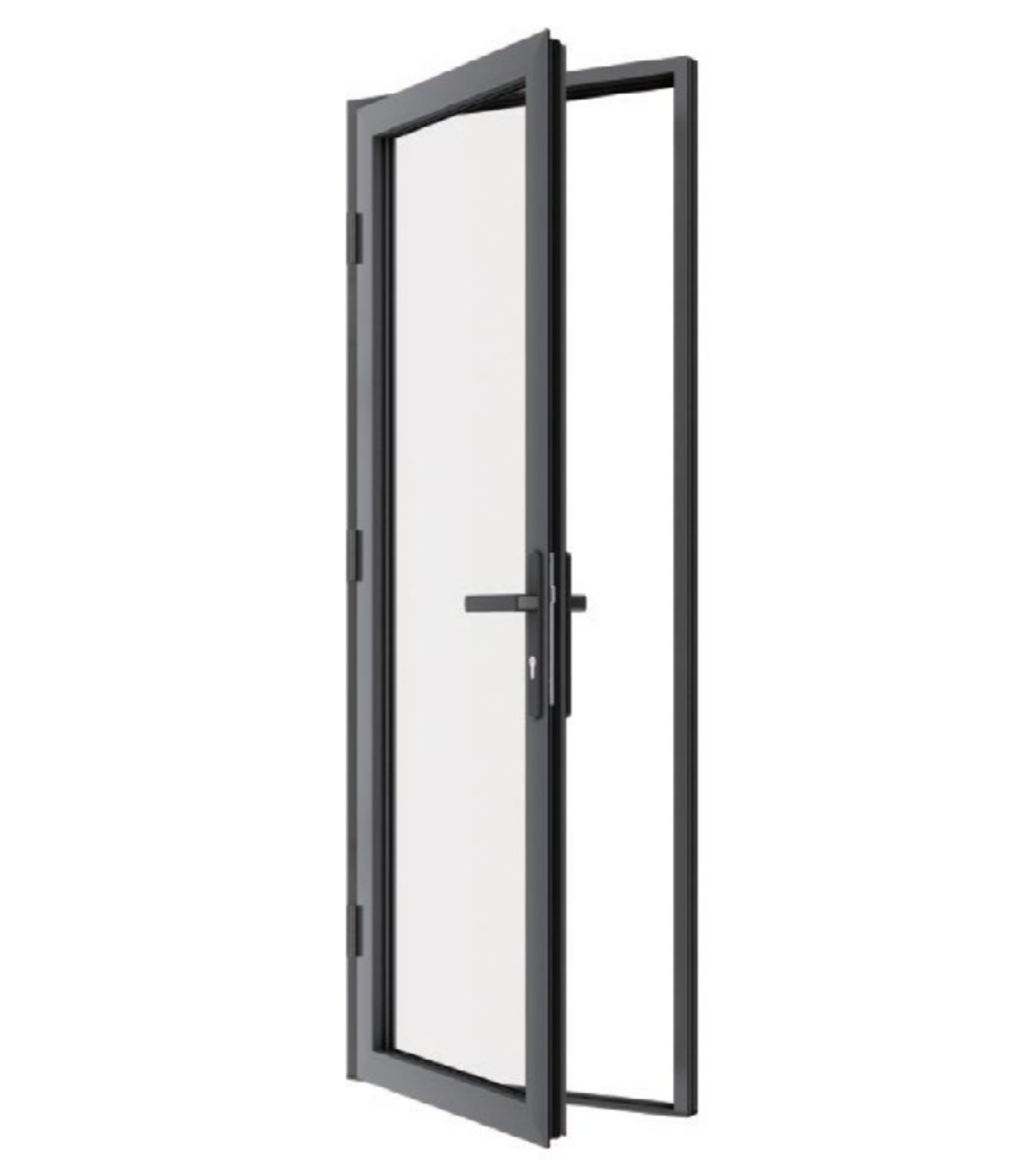

The VLX 100 is a modern aluminum swing door designed as a single entry point with a deliberately minimal frame and a multi-point locking mechanism that secures the panel at several heights along the jamb. That combination matters in Doral, where contemporary architecture favors glass-forward designs but hurricane awareness and security concerns never go away.

Buyers gravitate toward this series for three reasons. First, the frame stays slim. At 2.56 inches of profile width, it doesn’t read as bulky or industrial. Second, the aluminum construction resists the humidity, salt air, and intense UV that degrade lesser materials in South Florida. Third, the multi-point lock isn’t an afterthought; it’s integrated into the hardware specification from the factory, which means smoother operation and better sealing pressure against the weatherstrip.

Architecturally, the VLX 100 fits transitional and modern homes throughout Doral’s newer developments, from the condo conversions near NW 36th Street to single-family builds in neighborhoods like Doral Isles and The Greens. The door can carry large glass lites without the frame overpowering the opening, so it works well where natural light is part of the design intent. The 0.098-inch wall thickness gives the extrusion enough rigidity to stay square over years of use without adding unnecessary weight that strains hinges or hardware.

As an authorized ViewLux partner, Sightline Windows & Doors Doral receives direct technical support, current specification sheets, and warranty registration access. That matters when you’re investing in a product that should last twenty-plus years in Doral’s demanding environment.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency
The VLX 100 uses thermal break technology to separate interior and exterior aluminum surfaces, cutting conductive heat transfer. That NFRC-rated performance matters in Doral, where summer attic temperatures can push cooling loads hard and energy costs add up across a cooling season that runs eight months or longer.

Acoustic Performance
The frame’s insulated core, combined with proper glass selection, reduces exterior noise transmission. For homes near Palmetto Expressway, NW 87th Avenue, or flight paths into Miami International, the laminated glass option adds mass that dampens sound further without changing the door’s appearance.

Airtightness & Weather Seal
Compression seals and factory-applied weatherstripping meet AAMA 2400/2410 standards for air infiltration resistance. In Doral’s muggy summers, that tight seal keeps conditioned air inside and prevents the sticky, humid air from finding its way around the frame.

Waterproofing
The sill profile and perimeter drainage path direct wind-driven rain outward. AAMA 812 low-expansion foam sealant fills the rough opening gap with a flexible, waterproof bond that moves with the structure without cracking or pulling away.

Wind Resistance
The VLX 100 is wind-load rated for local climate requirements, including the pressures specified in Miami-Dade County’s High Velocity Hurricane Zone. The laminated glass option meets impact requirements for debris protection during storm events.

Security & Hardware

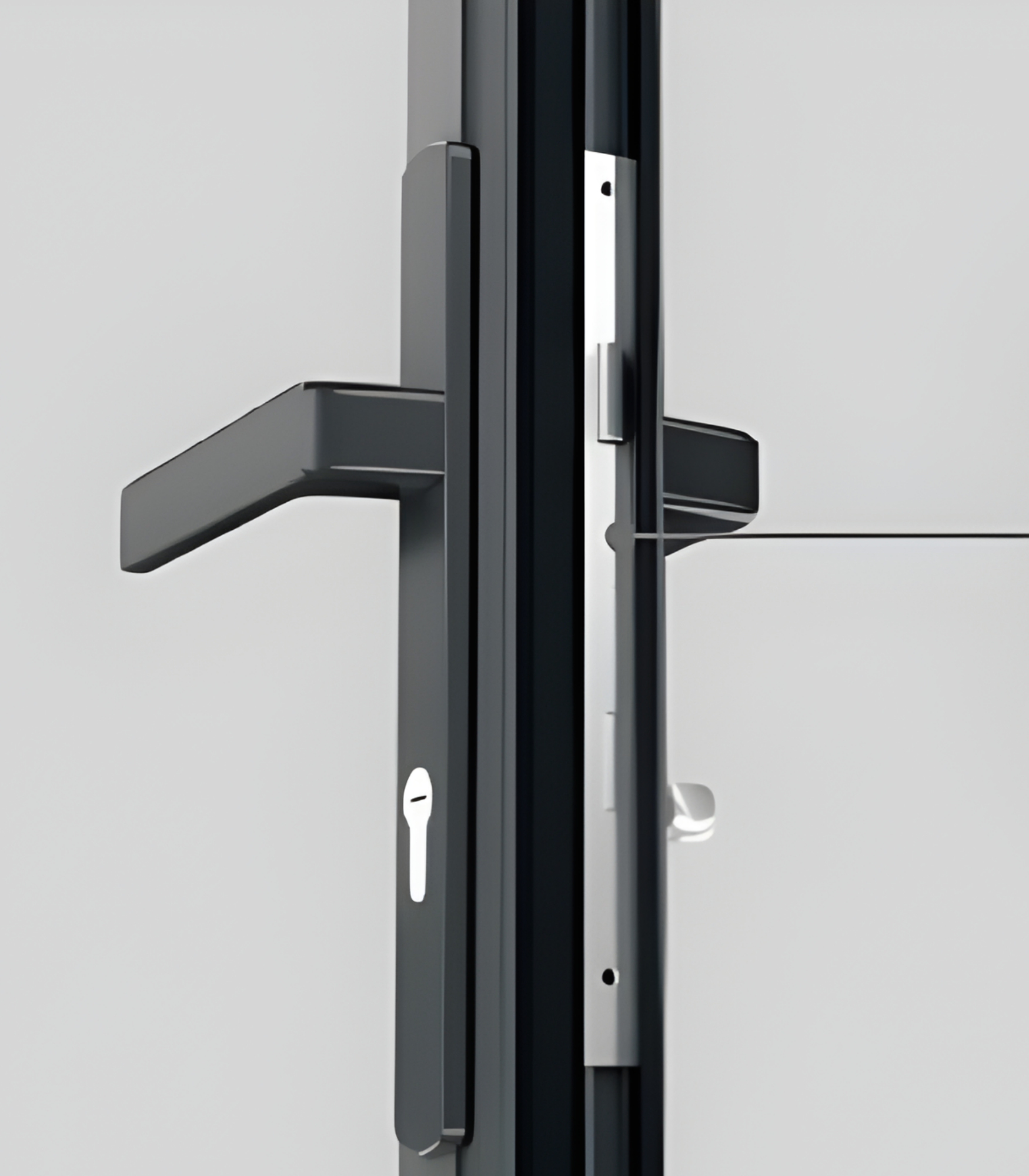

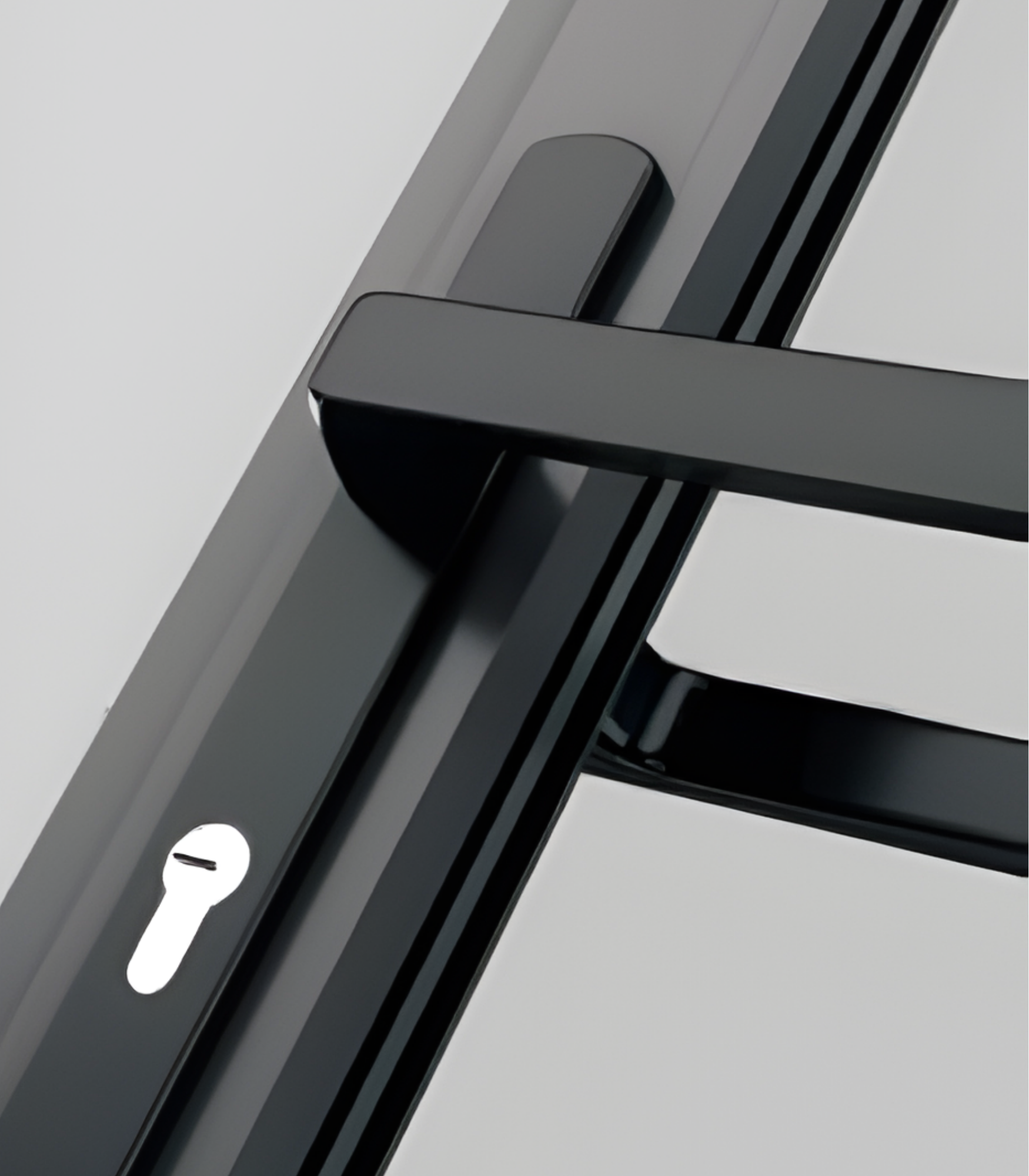

The multi-point lock engages at the deadbolt, a mid-point hook, and a lower bolt. That distributes forced-entry resistance along the full jamb rather than concentrating it at one latch. Hardware finishes coordinate with the six frame color options for a consistent look.

Color & Glass Options

Six finishes and six glass types give Doral homeowners real flexibility without overwhelming the decision.

Premium Black and Pure White suit the clean, high-contrast palettes common in modern Doral architecture. We’ve installed black frames against white stucco in several homes near Doral Central Park, and the combination holds up well to South Florida sun without the fading you’d see on lower-grade coatings.

Anodized Silver reads as industrial-modern and pairs well with exposed concrete or metal panel exteriors. Bronze and Champagne soften the look for transitional homes that mix traditional rooflines with contemporary window and door proportions. Teak Wood offers a warm, organic tone that works on homes with wood-look porcelain or natural stone accents.

Glass selection should match the door’s location and privacy needs. Clear glass maximizes light and views for front entries with covered porches. Frosted or Obscure glass suits side entries, pool bath access doors, or any opening where privacy matters more than the view. Low-E coating reflects infrared heat and is worth specifying on west-facing doors that take afternoon sun. Tempered glass is standard for safety near walking surfaces. Laminated glass adds the impact resistance required for hurricane protection and also reduces sound transmission.

The retractable screen option lets you ventilate through the entry without a fixed screen door cluttering the aesthetic. In Doral’s breezier winter months, that’s a feature homeowners actually use.

Installation by Sightline Windows & Doors Doral in Doral

We install every VLX 100 to the standards that protect your investment. That starts with a pre-install inspection of the rough opening: we check for square, level, and structural integrity before the door ever leaves our truck. An out-of-plumb opening will twist the frame, stress the hardware, and eventually compromise the seals.

Setting the frame requires shimming at structural points, not just where it’s convenient. We verify plumb on both jambs and check square across the diagonals before fastening. The sill gets bedded in sealant and leveled to drain properly. Once the frame is fixed, we apply AAMA 812 low-expansion foam sealant around the full perimeter. That foam fills the gap between frame and rough opening with a flexible, waterproof seal that accommodates normal structural movement without cracking.

Our installations comply with AAMA 2400/2410 standards for door and window installation. That isn’t box-checking; it’s the specification that ViewLux and other major manufacturers reference when they evaluate warranty claims. Improper installation, including skipped foam sealant, wrong fasteners, or unsealed penetrations, voids the manufacturer warranty. We’ve seen homeowners in Doral learn that the hard way after hiring unqualified installers who left gaps that leaked during the first summer storm.

After installation, we run a water test on the sill and perimeter, operate the multi-point lock through multiple cycles, and confirm the door opens, closes, and latches smoothly. We protect the finish during construction and leave the site clean. For Doral’s climate specifically, we verify that drainage paths are clear of debris and that the sill cap directs water away from the subfloor, because afternoon thunderstorms here don’t drip; they dump.

If your project requires a permit, we pull it. If inspections are required, we coordinate them and correct any findings. You get a door that performs as specified, backed by both the ViewLux product warranty and our workmanship guarantee.

Frequently Asked Questions - VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door in Doral?
Lead time typically runs 4 to 6 weeks from final measurement and deposit, depending on glass and finish selection. Laminated impact glass and custom sizes may extend that by 1 to 2 weeks. Call (786) 460-1563 to check current production schedules and reserve your slot.

Does the VLX 100 qualify for energy tax credits?
The Low-E glass option with thermal break construction meets the NFRC performance criteria that federal energy tax credits require. We provide the product performance certificates you’ll need at tax time. For current credit amounts and eligibility rules, consult your tax preparer. Call (786) 460-1563 and we’ll confirm which configurations qualify.

What warranty comes with the Swing / Entry Door?
ViewLux backs the VLX 100 with a limited lifetime warranty on the aluminum frame and a 10-year warranty on the insulated glass unit, provided installation meets manufacturer standards. Our workmanship carries a 5-year guarantee covering installation-related issues. Warranty registration is completed by Sightline Windows & Doors Doral on your behalf.

Can I customize the size of my VLX 100 door?
The VLX 100 accommodates panel widths up to 48 inches within the standard height range. Oversize options beyond that may be available through ViewLux’s custom program with extended lead times. We’ll measure your opening and confirm whether a standard or custom specification works best. Call (786) 460-1563 to schedule that measurement.

How do I maintain aluminum frames in Doral’s climate?
Rinse the frame with fresh water every 2 to 3 months to remove salt and dust accumulation, especially if you’re near the western edge of Doral where agricultural dust is more common. Wash with mild soap and a soft cloth annually. Avoid abrasive cleaners or solvents that can damage the finish. Lubricate the multi-point lock mechanism with a dry Teflon spray once yearly. The powder coat and anodized finishes are built for this environment, but basic care extends their life significantly.

Get a Quote - VLX 100 Swing / Entry Door in Doral

Ready to see how the VLX 100 fits your project? We’ll bring samples, measure your opening, and deliver a written line-item quote with no pressure to decide on the spot. Every quote includes your selected finish, glass type, hardware, screen option, and full installation per AAMA standards. Call (786) 460-1563 or reach out through our site to schedule your free estimate with Sightline Windows & Doors Doral.

Written by the team at Sightline Windows & Doors Doral, authorized ViewLux installation partner serving Doral, FL.
